Google Analytics¶

Overview¶

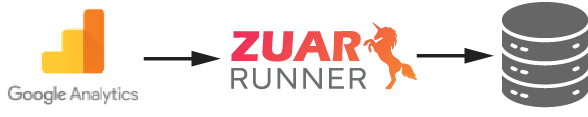

The Google Analytics connector enables Zuar Runner to pipe data from Google Analytics and store the data in a database.

In order to create a Google Analytics job in Zuar Runner, you’ll need two pieces of information from your organization’s Google Analytics account:

A Service Account JSON credentials file - see the first section of this document (“Initial Google Analytics Setup for Zuar Runner”) for instructions to enable the API, create a Service Account, and download this file.
The View ID for the specific View which will provide data to Zuar Runner

Initial Google Analytics Setup for Zuar Runner¶

You’ll only need to complete these steps once, unless you setup multiple Service Accounts.

Note

These steps require Google Analytics administrator access. Login with the correct administrator account before performing any of the following.

Enable the Google Analytics API¶

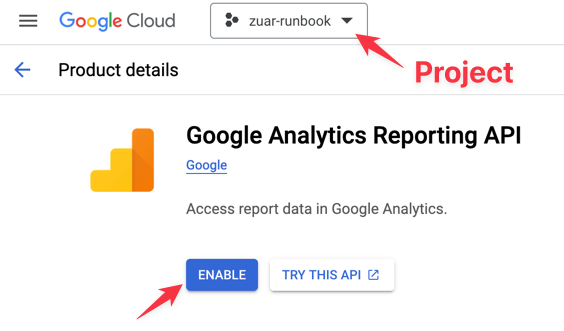

While logged in as an administrator of your organization’s Google Analytics account, browse to Google Cloud’s APIs & Services page.
Make sure you have the correct Project selected in the header drop-down.
Click Enable. The page will be updated to display Google Cloud’s API & Services page, indicating that API access has been enabled for your Google Analytics account.

Create a Service Account¶

Note

A service account’s credentials include a unique, generated email address and at least one public/private key pair. If domain-wide delegation is enabled, a client ID is also part of the service account’s credentials.

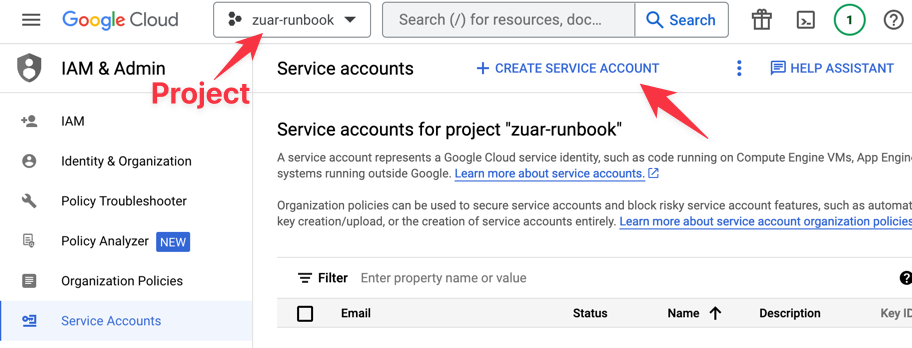

Go to Google IAM & Admin’s Service Accounts page.
Select the appropriate project from the header drop-down.
Click + CREATE SERVICE ACCOUNT.

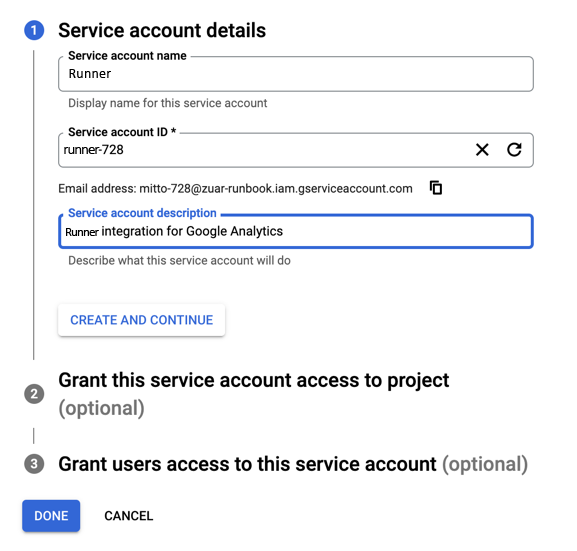

Enter a name and description for the Service Account, for example:

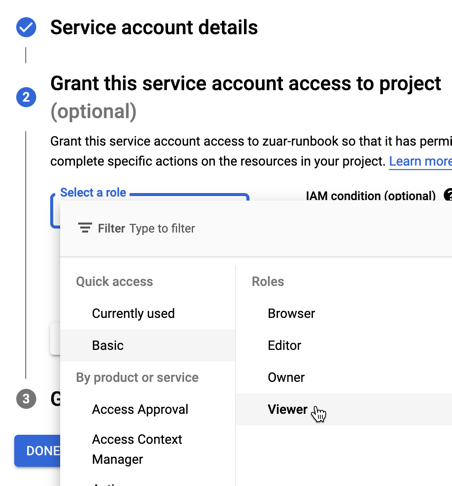

Select the Viewer role under Quick Access > Basic. Select Continue.
Click Done to create the Service Account.
Click on the newly created Service Account’s email address to edit its details.

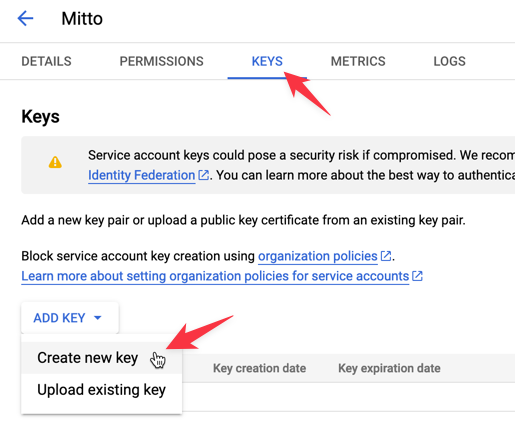

Click the KEYS tab. Select Create new key from the ADD KEY drop-down.
Ensure JSON is selected and click CREATE. The JSON file will be downloaded. Store this file securely as you’ll need it when creating Google Analytics jobs in Zuar Runner. This is the only time you’ll be able to access this file!
Copy the client_email email address from the JSON file. This is needed later to add this service account to Google Analytics.

Reference: Google Cloud Service Account Documentation

Add the Service Account User to the Google Analytics Account¶

You can add users at the account, property, or view level. The level at which you add a user determines that user’s initial access. For example, if you add a user at the account level, then that user also has access to all the properties and views in the account, with the same set of permissions. If you add a user at the view level, then the user has access to only that view with the permissions you provide. You can change the level of access and permissions for a user at any time.

Source: Google Analytics User Management Documentation

Unless your organization’s security needs prevent it, we recommend attaching the Service Account at the account level. Your Service Account will then have access to all properties and views on the account. Otherwise, you’ll need to repeat the steps below for each property or view you wish to access via Zuar Runner’s Service Account.

Login to Google Analytics
Choose Admin in the left sidebar. If the sidebar is collapsed, you’ll only see a gear icon.
Select the correct Account from the drop-down.
Click Account Access Management in the Account column. (If you are attaching the Service Account to a lower level, you’d select the property and/or view and then the Access Management link at the desired level.)
Click the blue + icon in the upper-right and choose Add new user.
Enter the email address created for the Service Account (client_email from the JSON file)
Choose the Analyst Role.
Click Add in the upper-right.

Create a Google Analytics Job in Zuar Runner¶

Once you’ve setup your Google Analytics account and obtained the JSON credentials files (see the section above, “Initial Google Analytics Setup for Zuar Runner”), you’re ready to add your first Zuar Runner job to access data.

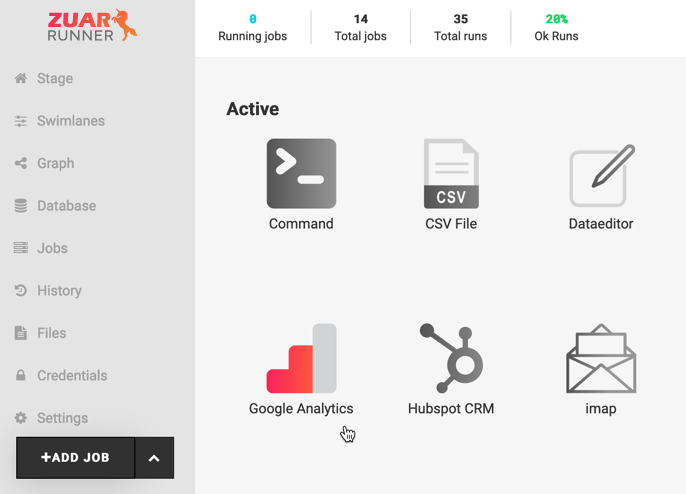

Click +Add Job in Zuar Runner’s left sidebar.
Choose Google Analytics.

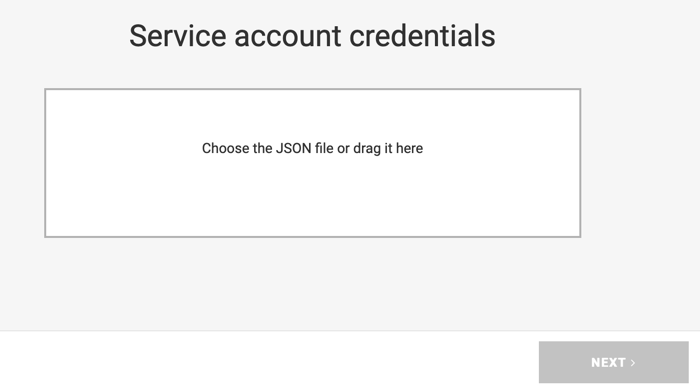

The Google Analytics connector uses a JSON credentials file from a Service Account for authentication. See the “Create a Service Account” section above for more information. Click the box labeled Choose the Json file or drag it here to select your JSON file from the file browser, OR drag and drop the JSON file into the box on the Zuar Runner webpage.
Click Next.

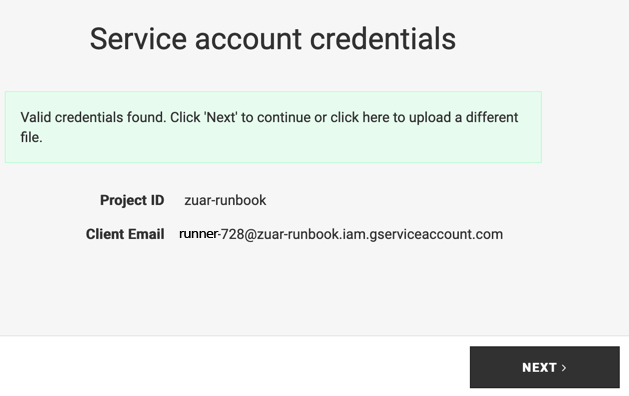

If the JSON file is valid, you’ll see a confirmation message. Otherwise click the link to try again.
Click Next.

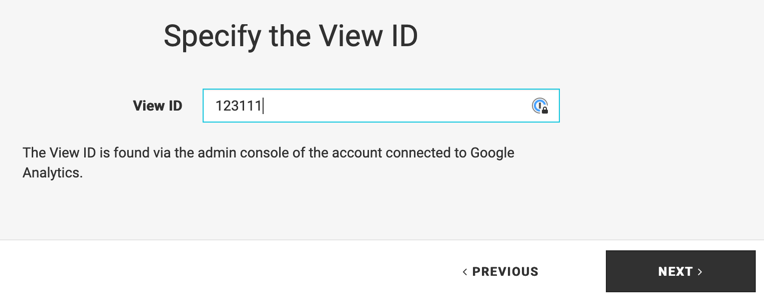

Specify the View ID and click Next. See the Find a View ID section below for more information about the View ID.
Click Next.

The Zuar Runner Google Analytics connector allows the user to pick a combination of metrics and dimensions that will create a report from the Google Analytics API.

Here’s a third-party tool that can help with this process: Google Analytics Dimensions and Metrics Explorer

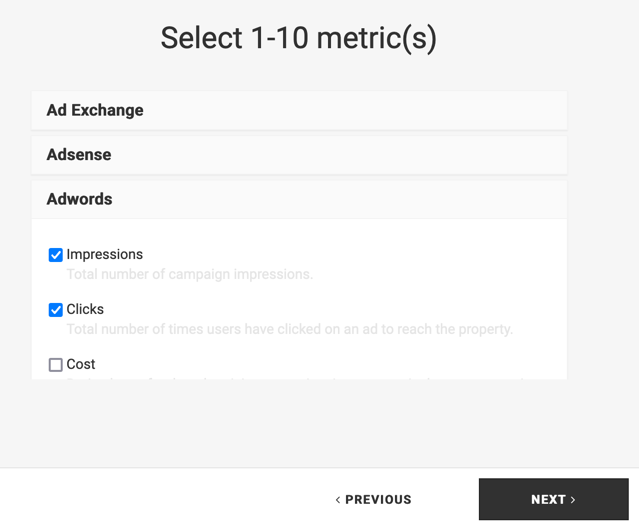

Select up to 10 desired metrics and click Next.
Select up to 8 dimensions and click Next.

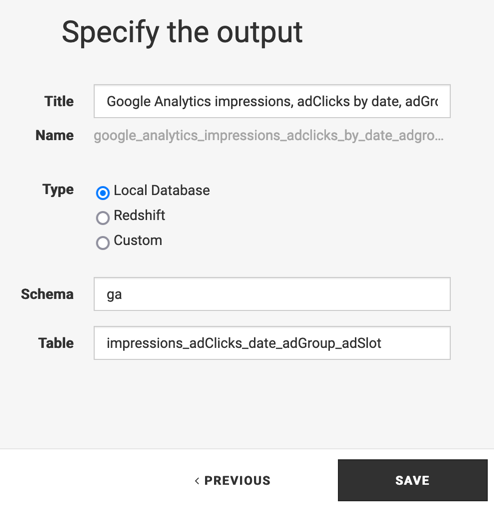

Specify where where Zuar Runner should store the data.
- Title
  - The title of the Zuar Runner job created by the wizard
  - Pre-populated based on metrics and dimensions selected but can be modified.
- Type
  - Local Database (recommended): Zuar Runner’s internal PostgreSQL database
  - Redshift: AWS-hosted database
  - Custom: Specify the connection string of the destination database.
- Schema
  - The schema is a database organization mechanism which groups database objects (tables, views, etc.) and can be used for security purposes.
  - Default schema: ga
  - See the Best Practices section below for tips on naming schemes.
- Table
  - The name of the database table that Zuar Runner will use to store the Google Analytics data retreived by this job.
  - Pre-populated based on metrics and dimensions selected but can be modified.
Click Save.

Find a View ID¶

A view is your access point for reports; a defined view of data from a property. You give users access to a view so they can see the reports based on that view’s data. A property can contain one or more views.

Source: Google Analytics Hierarchy Documentation

Note

In 2023, Google Analytics introduced a new type of property called GA4 which is a replacement for the older Universal Analytics (UA) properties. Currently, Zuar Runner jobs require Universal Analytics (UA) properties.

Google Analytics Account with Universal Analytics (UA) Properties¶

If your account is using the new GA4 properties, see the GA4 section bleow.

Log in to Google Analytics.
Choose Admin in the left sidebar. If the sidebar is collapsed, you’ll only see a gear icon.
Select the correct Account, Property, and View combination from the drop-downs.
Click View Settings in the View column. View ID will be listed under Basic Settings. Save this value for use when creating a Zuar Runner job.

Google Analytics Account using GA4 Properties¶

If your account is using the new GA4 properties, check your account to see if the older UA properties still exist. (UA properties are prefixed with UA-.) If so, use the UA property and proceed with step 3 above.

If you don’t have a UA property, you’ll need to create one for use with Zuar Runner, following these steps:

In Google Analytics, choose Admin in the left sidebar. If the sidebar is collapsed, you’ll only see a gear icon.
Select the correct Account from the drop-down.
Click + Create Property.
Click the Show Advanced Properties button.
Enable the switch control next to Create a Universal Analytics property.
Select the radio button for Create a Universal Analytics property only.
To connect the Serivce Account, proceed with step 3 in the UA section above.

Google Analytics and Zuar Runner Best Practices¶

Test Metrics and Dimensions Combinations Before Creating Your Zuar Runner Jobs¶

Use a third party tool (Google Analytics Dimensions and Metrics Explorer) to determine the combinations of dimensions and metrics that work for your use case before you go through the Zuar Runner plugin wizard process.

Naming Convention for Zuar Runner Jobs and Database Schemas¶

Typically users pull data from more than one View ID in Google Analytics, so naming convention on jobs and output schemas/tables is important. The default database schema is ga, but we recommend using the following schemas naming format if you are pulling from multiple Google Analytics views:

ga_name_of_view_id_1
ga_name_of_view_id_2

If you separate Google Analytics views into different schemas, but keep the table names the same (for the same combination of dimensions and metrics), you can easily start to analyze data across multiple view IDs or Google Analytics accounts.

Data Normalization¶

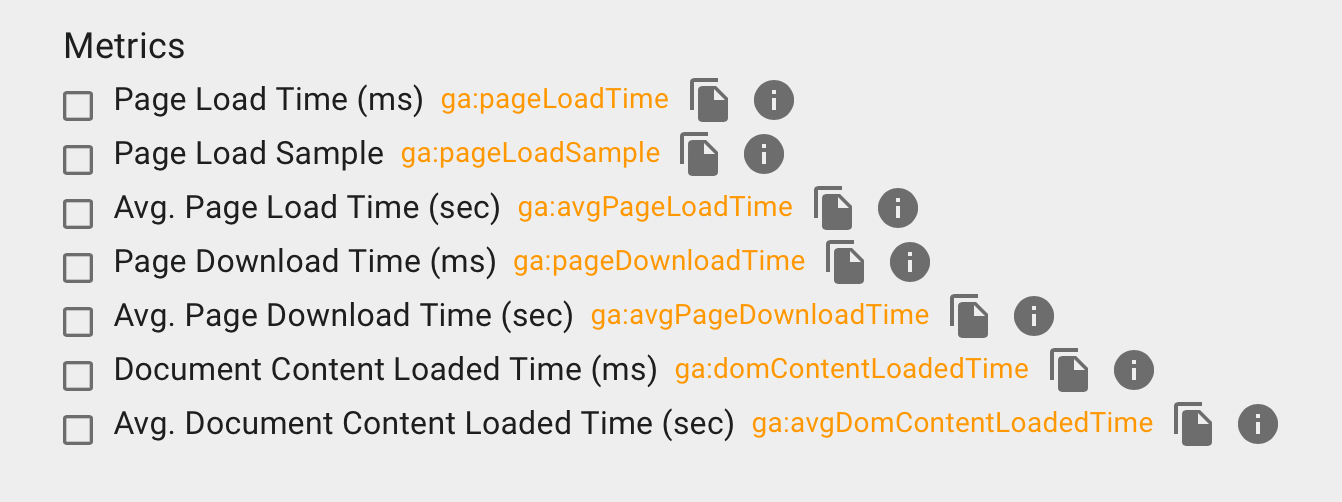

Google APIs format time-based metrics differently than what you may be familiar with in the Google Analytics web application. Additional transformations may be required based on the desired time format. Google defaults the following time-based metrics as milliseconds or seconds:

Anatomy of a Zuar Runner Google Analytics Job¶

When editing a Zuar Runner Google Analytics job, the following attributes are available. In this section we explain attributes you might want to update or add to your job configuration. Some of these are not accessible through Zuar Runner’s Google Analytics wizard.

The JSON for these job types will look similar to this (only the input section is shown here):

input: {
   use: ga.io#GaInput
   credentials: {
     type: service_account
     project_id:
     private_key_id:
     private_key:
     client_email: <service account email address>
     client_id:
     auth_uri: https://accounts.google.com/o/oauth2/auth
     token_uri: https://oauth2.googleapis.com/token
     auth_provider_x509_cert_url: https://www.googleapis.com/oauth2/v1/certs
     client_x509_cert_url:
   }
   view_id: <UA view id>
   start_date: 2021-01-01
   end_date:
   chunk_size_in_days: 90
   metrics: [
     ga:users
     ga:newUsers
     ga:percentNewSessions
   ]
   dimensions: [
     ga:date
     ga:continent
     ga:country
     ga:region
     ga:city
     ga:latitude
     ga:longitude
   ]
 }

view_id¶

The view_id attribute determines which Google Analytics view the Zuar Runner job will access data from. If the id was entered incorrectly into Zuar Runner’s Google Analytics wizard, it can be updated here.

Required: Yes
Format: Match the format given in Google Analtyics, e.g. 123987
See the section above for information on retreiving the View ID from Google Analytics.

start_date¶

The start_date attribute determines the date the Zuar Runner job will retrieve data starting from.

Required: No
Format: YYYY-MM-DD
Default: 2005-01-01 (January 1, 2005)
Recommended setting: set appropriately for analytical use case; most scenarios do not require data going back to 2005

end_date¶

The end_date attribute determines the date the Zuar Runner job will retrieve data up to.

Required: No
Format: YYYY-MM-DD
Default: None (get latest available data)
Recommended setting: set appropriately for analytical use case; no need to set if Zuar Runner should get the latest data each time the job executes

chunk_size_in_days¶

The chunk_size_in_days attribute determines the number of days worth of data to be included in each “chunk” returned by Google Analytics. While this is not a required attribute, we recommend setting it to 90 to limit the number of API calls Zuar Runner makes and avoid hitting the Google Analytics API rate limit. Additionally, if a large dataset is requested this setting will disable the automatic sampling Google Analytics would normally use to return results, ensuring data accuracy.

Required: No
Format: number of days as an integer, e.g. 90
Default: None
Recommended setting: 90

metrics¶

The metrics attribute is populated by the Google Analytics metrics you chose during the initial setup via Zuar Runner’s wizard. If you need to modify them after initial job creation, you can do so via this attribute. See the section above on metrics and dimensions for more information on finding and testing metrics and dimensions.

Required: Yes
Format: List each metric on a new line between brackets, for example:

metrics: [
    ga:users
    ga:newUsers
    ga:percentNewSessions
]

Default: None
Recommended setting: set appropriately for analytical use case

dimensions¶

The dimensions attribute is populated by the Google Analytics metrics you chose during the initial setup via Zuar Runner’s wizard. If you need to modify them after initial job creation, you can do so via this attribute. See the section above on metrics and dimensions for more information on finding and testing metrics and dimensions.

Required: No
Format: List each dimension on a new line between brackets, for example:

dimensions: [
    ga:date
    ga:continent
    ga:country
    ga:region
    ga:city
    ga:latitude
    ga:longitude
]

Default: None
Recommended setting: set appropriately for analytical use case
